Panasonic KX-NS5180 6 Port LCOT Card (LCOT6)

  • 6 LCOT Portova za priključenje standardnih telefonskih linija
  • Identifikacija dolaznih poziva CID
  • Povezuje se preko 3 RJ45 porta, jedan port ima 2 ulazne linije
  • Može da se montira u kabinete kx-ns500, kx-ns520, kx-ns700
  • Novi model !

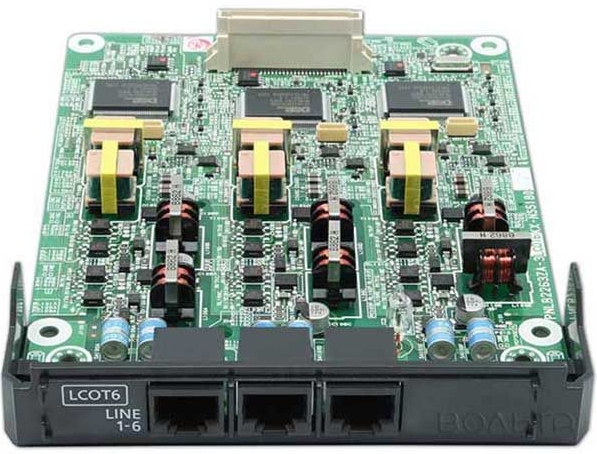

Panasonic KX-NS5180 6 Port Analog Trunk Card (LCOT6)

KX-NS5180 - KX-NS5180 is a LCOT6 card for conneting external analog lines, Works KX-NS500, KX-NS520 and KX-NS700

The Panasonic KX-NS5180 is a LCOT6 card for conneting external analog lines. The card has been designed to work with network servers KX-NS500 & KX-NS520. The device allows you to connect 6 additional external analog lines and can add up to 48 lines maximum. It incorporates caller ID feature on all ports with a standard FSK and DTMF. The device is also capable of detecting reverse polarities and damaged lines as a built-in feature. There are two emergency ports available for emergency which can operate without power. The card comes equipped with 3 RJ45 slots.

•  Analog Lines Extension Card

•  Adds 6 Analog External Lines (Max 48 Lines)

•  Caller ID w/ FSK & DTMF

•  Built-in Reverse Polarity Detection

•  Detects Damaged Lines

•  2 Emergency Ports

•  3 RJ45 Sockets

•  Includes LCOT6 Card & Mounting Hardware

Works With The Following Systems: Panasonic KX-NS500, KX-NS520, KX-NS700


  Panasonic KX-NS5180 Panasonic KX-NS5180

PBX Compatibility
KX-TDA15/30/100/200/600 from MPR software file version 5.0
KX-TDE100/200/600 from MPR software file version 2.0
KX-NCP500/1000 from MPR software file version 1.0


Katalog u PDF formatu sa tehničkim opisom (eng. 316KB)
